JUKI bar tack tshuab
1. Tshuab Lub Npe: Juki Bar Tack Tshuab
2. Brand: JUKI
3. Model: LK-1900S
4. MOQ: 10sets
5. Max.Sewing Ceev: 3200sti / min
6. Koob Bar Stroke: 41.2mm
7. Sewing cheeb tsam: 30 × 40mm
8. Koob: DP × 5 (#14)
9. Tus naj npawb ntawm cov ntaub ntawv uas tuaj yeem nkag tau: 200Patterns
1 0. Stitch Length: 0 1-10mm (0.1mm kauj ruam)
JUKI LK-1900S bar tack tshuab series:
JUKI LK-1900S bar tack tshuabtau tsim los kom muaj kev yooj yim thiab txo qis peev xwm uas yog qhov tseem ceeb los tsim JUKI txoj kev tsim seam zoo.
Tsis tas li ntawd, nws txhawb nqa tus neeg teb xov tooj nrog lub suab qhia kev txhim kho kev ua haujlwm.
JUKI LK-1900S Bar tack tshuab parameters:
|
Model npe |
LK-1900S-SS |
LK-1900S-HS |
|
Daim ntawv thov |
Txuj |
Rau cov khoom hnyav hnyav |
|
Lubrication |
Semi-dry lub taub hau (Hook: feeb-quantity lubrication) |
|
|
Max. xaws ceev |
3200sti / min (thaum lub sijhawm xa khoom: 2700sti / min) |
|
|
Sewing cheeb tsam |
30mm (L) × 40mm (W) |
|
|
Stitch ntev |
{{0}} 1-10mm (0.1mm kauj ruam) |
|
|
Koob bar stroke |
4 1.2mm |
|
|
Nqa cov haujlwm clamp ko taw |
Standard 13mm (17mm thaum rov qab-rotation koob-up muaj nuj nqi) |
|
|
Auto-lifter |
Muab raws li tus qauv (stepping motor type) |
|
|
Koob xov tension |
Caij nplooj ntoos hlav hom dial xov nro xws li |
|
|
Koob (thaum lub sijhawm xa khoom) |
DP × 5 (#14) |
Luas DP × 17 (#21) |
|
Hook |
Standard shuttle nuv |
|
|
Tus lej ntawm cov hlua khi uas tuaj yeem khaws cia hauv lub cim xeeb |
Max. 20000 stitches |
|
|
Tus naj npawb ntawm cov qauv qauv |
51 qauv |
|
|
Tus naj npawb ntawm cov ntaub ntawv uas tuaj yeem nkag tau |
200 qauv |
|
|
Txhim kho / txo qhov chaw |
20-200% (1% kauj ruam), Qauv o / txo tuaj yeem ua tiav los ntawm kev nce / txo qhov ntev stitch |
|
|
Nco nruab nrab |
Internal-organs nco |
|
|
Bobbin xov counter |
Muab raws li tus qauv (up / down method) |
|
|
Lubricating roj |
JUKI Tshiab Defrix Roj No.2 (sib npaug rau ISO VG32) |
|
|
Tshuab xaws tshuab |
Compact AC servomotor (direct tsav system) |
|
|
Fais fab mov / Fais fab mov |
Ib-theem 200-240V / 250VA |
|
|
Qhov hnyav |
Tshuab taub hau (xws li lub cev muaj zog) 42kg, Tswj lub thawv 5.1kg |
|
JUKI LK-1900S bar tack tshuab nta:
1. Lub suab qhia rau tus neeg teb xov tooj
JUKI LK-1900S bar tack tshuab yog muab raws li tus qauv nrog lub suab-kev taw qhia system nrog moos ua haujlwm. Cov lus qhia lub suab no tuaj yeem siv rau lub hom phiaj ntawm kev txhawb nqa ntau lawm xws li muab cov ntaub ntawv xov xwm rau tus neeg teb xov tooj ntawm cov khoom tsim, kev tswj hwm kev ua haujlwm thiab kev ua haujlwm ntawm lub tshuab xaws, txawm tias yuav tsum tau pib qhov kev teeb tsa.
Lub vaj huam sib luag ua haujlwm tau muab raws li tus qauv nrog USB chaw nres nkoj. Qhov no txhais tau hais tias lub tshuab xaws cov ntaub ntawv kev tswj hwm thiab kev hloov kho software tuaj yeem ua tau yooj yim los ntawm kev siv USB chaw nres nkoj.
2. Kev tsim khoom siab dua
JUKI LK-1900S bar tack tshuab ua kom luv tag nrho lub sijhawm voj voog nrog nws cov peev xwm txhim kho xws li qhov siab tshaj plaws xaws ceev ntawm 3,200 sti / min, ceev acceleration thaum pib ntawm xaws thiab ceev deceleration thaum kawg ntawm xaws, nce xov trimming ceev thiab ua hauj lwm clamp ko taw lifting ceev.
3. Lub tshuab xaws muab qhov chaw xaws ntawm 30mm (ntev) × 40mm (dav)
Nrog rau nws qhov chaw xaws loj, lub tshuab xaws no tuaj yeem siv tag nrho rau kev xaws ntau yam ntawm cov qauv xaws xws li lengthwise bartacking. Tsis tas li ntawd, lub tshuab xaws muaj xws li lub cim xeeb loj los khaws ntau qhov sib txawv ntawm qhov sib txawv, cov lej ntawm cov stitches thiab cov lej ntawm cov qauv xaws, yog li ua kom muaj kev hloov pauv tau yooj yim.
4. LK-1900S tuaj nyob rau hauv ob hom sib txawv los tso cai rau cov neeg siv khoom xaiv qhov zoo tshaj plaws
LK-1900S los ntawm ob hom sib txawv; piv txwv li, S hom (Standard) thiab H hom (rau cov khoom hnyav hnyav). Cov neeg siv khoom tuaj yeem xaiv ib qho ntawm cov hom no raws li lawv daim ntawv thov.
5. Lub tshuab xaws no sai sai ua cov tshuab xaws ntawm ntau hom kev xaws

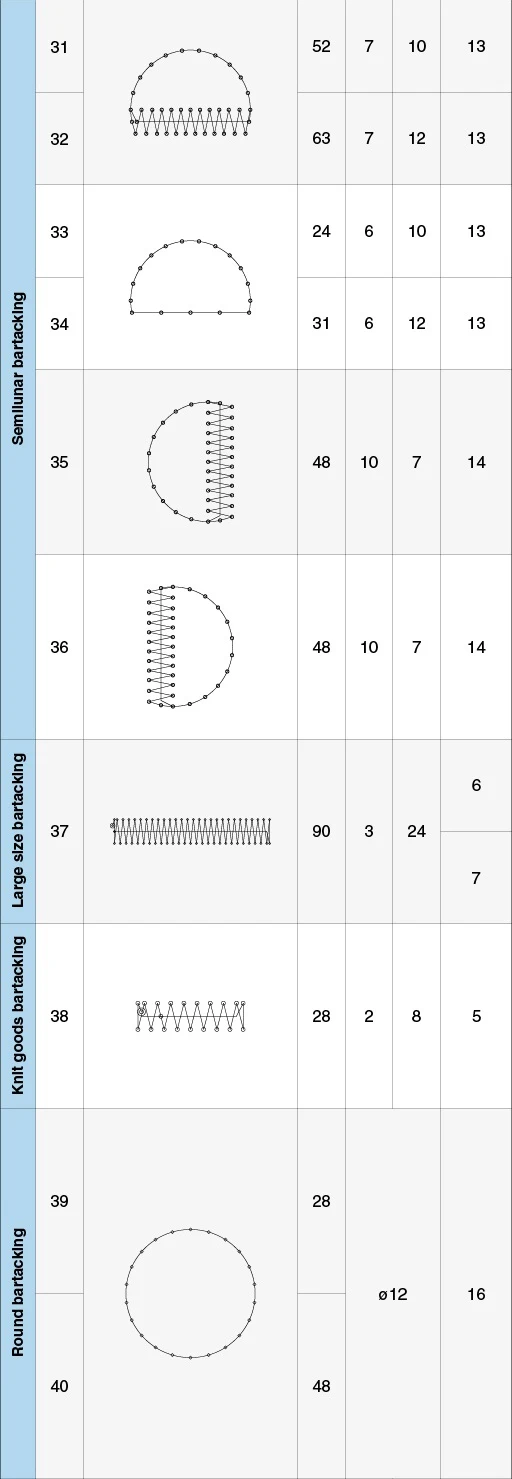

JUKI LK-1900S bar tack tshuab yog muab raws li tus qauv nrog 51 sewing qauv nrog sib txawv stitch qhia thiab pes tsawg stitches, xws li loj bartacking, me me bartacking, ncaj kab tacking. Tus neeg teb xov tooj tuaj yeem xaiv cov qauv xaws zoo tshaj plaws raws li cov txheej txheem muab. (Qee zaum, qhov chaw ua haujlwm clamp ko taw thiab lwm yam yuav tsum tau hloov.)
6. Ua haujlwm clamp ko taw nqa qhov siab (max. 17mm)
JUKI LK-1900S bar tack tshuab yog muab raws li tus qauv nrog stepping-motor hom ua haujlwm clamp ko taw nqa khoom. Qhov siab tshaj plaws nqa tus nqi ntawm kev ua haujlwm clamp ko taw yog 17 hli.
7. LED teeb (lub teeb kom muaj nuj nqis hauv tsib theem + lub teeb tawm ua haujlwm)
LED teeb uas illuminates lub koob nkag cheeb tsam yog muab raws li tus qauv. Lub teeb LED yog muab nrog rau 6-kauj ruam hloov pauv los tswj nws qhov ci ntsa iab thiab lub teeb tawm.
8. Kev ua haujlwm zoo tau cog lus ua haujlwm yooj yim
Lub kaw lus ncaj qha-tsav uas txuas ncaj qha rau lub compact AC servomotor mus rau lub ntsiab ncej ntawm lub tshuab xaws tau raug saws. Cov kab ke no ua rau kev pib sai thiab cog lus tias yuav tsum nres qhov tseeb, yog li pab txhawb kev ua haujlwm zoo dua.
9. Qhov chaw ntawm tes rub lub tes tso cai rau tus neeg teb xov tooj los xyuas cov koob nkag tau yooj yim
Lub tes pulley yog nyob ntawm caj npab ntawm lub taub hau tshuab. Qhov kev npaj no yuav pab tus neeg teb xov tooj pom cov koob nkag tau yooj yim.
10. TAB NTAWV NTAWM STANDARD
