JUKI LZ-2290 zig zag tshuab
1. Tshuab Lub Npe: Juki Zig Zag Tshuab
2. Brand: JUKI
3. Qauv: LZ-2290CF-7
4. MOQ: 10sets
5.Max.Sewing Ceev: 5000sti/min
6. Max. Zigzag Dav: Txheem 8 hli (txog 10 hli los ntawm kev hloov lub ntsuas)
7. Max. Pub Ntau: 5.0mm (2.5 hli thaum lub sijhawm xa khoom)
8. Number of Standard Sewing Patterns: 200 tus qauv
9. Nruam xaws qauv: Max. 20 qauv, 20 kauj ruam; 2000 stitches / kauj ruam
10. Lubricating Roj: JUKI Tshiab Defrix Roj No. 1 (sib npaug rau ISO VG7)
JUKI LZ-2290CF-7 zig zag tshuab:
JUKI LZ-2290CF-7 Zig Zag Tshuab
Inspire the Knowledge in Sewing Adjustment
Epoch-ua Sewing Systems hauv keeb kwm.
Cov tshuab xaws digital tshaj tawm cov txheej txheem tsim khoom ntxiv nrog cov khoom siv computer tshiab rau txhua tus neeg uas koom nrog kev tsim khoom.
JUKI LZ-2290CF-7 zig zag tshuab parameters:
|
Qauv |
Muab nrog tsis siv neeg xov trimmer |
LZ-2290CF-7 |
|
Specification |
Tag nrho cov hom digital |
|
|
Max. xaws ceev |
5000 sti / min (4000 sti / min thaum lub sijhawm xa khoom) |
|
|
Max. zigzag dav |
Standard 8 hli (txog 10 hli los ntawm kev hloov lub ntsuas) |
|
|
Koob pov mechanism |
Tswj lub cev muaj zog |
|
|
Feed mechanism (kab rov tav kev taw qhia) |
Tswj lub cev muaj zog |
|
|
Feed mechanism ( ntsug kev taw qhia) |
Tswj lub cev muaj zog |
|
|
Max. pub tus nqi |
5.0mm (2.5 hli thaum lub sijhawm xa khoom) |
|
|
Thread take-up lever |
Rotary thread take-up lever |
|
|
Xov nro tswj mechanism |
Rotary active nro |
|
|
Multi-layered feem nrhiav kom tau ntaus ntawv |
Muab |
|
|
Presser system |
Hom caij nplooj ntoos hlav (AK156 nquag nias hom yog hom digital) |
|
|
Tus nqi nqa ntawm presser ko taw |
Tes lifter: 5.5mm / Lub hauv caug-lifter: 10mm / Nws pib-lifter: 10mm |
|
|
Auto-lifter |
Xaiv ntawm lub tshuab taub hau (motor control) |
|
|
Hook |
DP nuv (titanium-coated puab nuv) |
|
|
Koob (thaum lub sijhawm xa khoom) |
ORGAN DP × 5 (#10), SCHMETZ 438 (Nm 75) |
|
|
Kev ua haujlwm vaj huam sib luag |
Xim kov vaj huam sib luag (muab nrog NFC muaj nuj nqi) |
|
|
Tus naj npawb ntawm cov qauv xaws |
11 hom, 20 qauv |
|
|
Lub peev xwm nco tau rau cov qauv kev cai |
200 qauv |
|
|
Max. tus lej ntawm txoj hlua |
500 stitches / qauv |
|
|
Nruam xaws qauv |
Max. 20 qauv, 20 kauj ruam; 2, 000 stitches/step |
|
|
Main lub cev input muaj nuj nqi |
Muab (los ntawm kev ua haujlwm vaj huam sib luag) |
|
|
tes hloov |
Triple hloov (kev cai-tsim yog ua tau)) |
|
|
LED |
Muab raws li tus qauv (muab nrog lub dimmer / toning functions) |
|
|
Bobbin Winder yog ib qho yooj yim |
Ua nyob rau sab saum toj ntawm lub tshuab taub hau |
|
|
Tshuab taub hau tsav |
Compact AC servomotor: 400W (tswj hom) |
|
|
Oiling |
Semi qhuav (Ntev: Lubricated nrog roj; Hook: Roj yog muab los ntawm lub tank) |
|
|
Lubricating roj |
JUKI Tshiab Defrix Roj No. 1 (sib npaug rau ISO VG7) |
|
|
Qhov deb ntawm lub tshuab caj npab mus rau rab koob / txaj loj |
300mm / 517mm × 178mm |
|
|
Kev siv fais fab |
600 VA |
|
|
Khoom hnyav |
4 9,8kg |
|
JUKI LZ-2290CF-7 Zig Zag Tshuab nta:
1. Kab rov tav-/ ntsug-tsav digital feed mechanism
Kab rov tav-/ ntsug-feed mechanism yog tswj los ntawm lub cev muaj zog.
Lub tshuab xaws tuaj yeem hloov kho tau yooj yim los ntawm kev khiav haujlwm ntawm lub vaj huam sib luag.
2. Rotary-type active nro tau txais yuav
Lub LZ-2290C yog lub ntiaj teb thawj lub tshuab xaws uas los nrog lub tshuab ua haujlwm sib hloov. Conventionally, nws tau nyuaj los kho cov xov nro thaum cov nyiaj seem ntawm bobbin xov tau txo. Lub tshuab xaws no, txawm li cas los xij, muaj peev xwm kho thiab ruaj khov ntawm cov xov nro los ntawm kev siv zog nruj.
Tsis tas li ntawd, cov xov nro tuaj yeem raug kho raws li kev xaws ceev, yog li ua rau kev txhim kho seam zoo.
3. Multi-layered feem nrhiav kom tau ntaus ntawv yog muab
JUKI LZ-2290CF-7 lub tshuab zig zag yog muab nrog cov khoom siv ntau txheej txheej nrhiav kom pom. Sewing tej yam kev mob ntawm ib tug ca feem thiab hais tias nyob rau hauv ib tug multi-layered ib feem ntawm cov khoom yuav raug raws li teem.
Yog li ntawd, cov teeb meem zoo ib yam uas yuav tshwm sim thaum xaws ib feem ntawm ntau txheej ntawm cov khoom xws li stitch sib sau ua ke thiab xoob stitches tuaj yeem tiv thaiv.
4. Cov ntaub ntawv thiab kev tswj lub tshuab xaws nrog IoT (Internet of Things)
"Ob txoj kev" kev sib txuas lus tsis sib txuas rau cov ntaub ntawv hloov pauv tuaj yeem ua nrog lub tshuab xaws los ntawm kev lag luam hauv lub davhlau ya nyob twg. Qhov tshwj xeeb no tso cai rau cov tshuab xaws hauv ib txoj kab xaws kom sib npaug thiab raug kuaj xyuas sai, yog li ua rau muaj kev ruaj khov hauv cov khoom zoo.
Tswj vaj huam sib luag yog tus qauv nrog USB chaw nres nkoj, cog lus yooj yim hauv kev tswj cov ntaub ntawv thiab kev hloov kho tshiab.
5. Lub tshuab xaws muab kev xaws zoo tshaj plaws raws li cov txheej txheem thiab cov khoom siv
Kev hloov pauv ntawm lub sijhawm pub mov tau ua haujlwm siv sijhawm. Rau LZ-2290C, txawm li cas los xij, lub sijhawm pub mis tuaj yeem hloov tau yooj yim los ntawm kev khiav haujlwm ntawm lub vaj huam sib luag. Yog li ntawd nws yog qhov ua tau los teeb tsa lub sijhawm pub noj kom tsim tau cov seam zoo (soft⇔standard⇔hard) uas haum rau cov txheej txheem.
Tsis tas li ntawd, qhov chaw pub noj tuaj yeem hloov mus rau qhov ntawd txhawm rau tiv thaiv cov khoom slippage. Nrog rau cov kev txhim kho no, lub tshuab xaws muab kev txhawb nqa ntxiv rau cov khoom siv.
6. Active presser hom tuaj yeem xaiv
Ua tsaug rau kev saws me nyuam los ntawm kev siv lub zog presser ko taw, lub presser ko taw siab tuaj yeem raug kho raws li kev xaws ceev, thiab dhia thaum lub sij hawm siab ceev xaws tuaj yeem raug txwv.
(Xaiv tsis siv neeg ko taw nqa AK156 hom thaum lub sijhawm xa khoom hauv lub Hoobkas)
7. Kev xaws ntawm cov qauv sib txawv yog ua tau
JUKI LZ-2290CF-7 zig zag tshuab yog muab raws li tus qauv nrog 11 hom / 20 qauv ntawm cov qauv yooj yim plooj. Cov qauv xaws xws li zigzag stitching, T stitching thiab qauv xaws tuaj yeem xaiv ntawm lub vaj huam sib luag ua haujlwm tshiab ntawm lub cev tseem ceeb, yog li ua kom qhov chaw ua haujlwm tau zoo.
Tsis tas li ntawd, cov qauv xaws tuaj yeem tsim rau txoj kev xaws brassiere rau xaws ib lub brassiere thaum hla nws cov pob txha. Qhov no kuj pab ua kom cov khoom tsim tau.
Rau cov txiv neej cov khaub ncaws, lub tshuab yog siv nyob rau hauv cov txheej txheem xws li topstitching rau welt hnab ris, xaws dab tshos ntaub thiab xaws daim ntawv lo. Rau cov poj niam cov khaub ncaws, nws tuaj yeem ua qauv stitching rau dab tshos thiab pem hauv ntej lub cev ntawm lub tsho thiab blouses. Tsis tas li ntawd, cov qauv qub tuaj yeem tsim tau siv cov qauv kev cai, ua rau lub tshuab siv rau ntau yam kev siv.
8. JUKI Smart APP tso cai rau koj xa thiab lees paub ntau yam ntaub ntawv
Nyob rau hauv daim ntawv thov, muaj cov khoom ntawm kev tswj kev teeb tsa (sau npe davhlau ya nyob twg), cov ntaub ntawv tshuab xaws (cov ntaub ntawv xaws), daim ntawv qhia teeb meem. Nyob rau hauv daim ntawv qhia qhov teeb meem, peb tuaj yeem tsim cov duab kos duab, daim ntawv muaj nyob, thiab lwm yam rau txhua qhov tau txais cov ntaub ntawv tshuab xaws kom nws tuaj yeem siv los xyuas qhov xwm txheej tam sim no thiab tshuaj xyuas.
9. Kev txuag hluav taws xob
Tsis siv neeg OFF muaj nuj nqi ntawm lub lag luam-vaj huam sib luag backlight
Lub teeb rov qab ntawm lub vaj huam sib luag yog txiav tawm thaum lub lag luam vaj huam sib luag tsis ua haujlwm rau qee lub sijhawm. (Qhov kev teeb tsa yog los ntawm 1 mus rau 20 feeb.)
Pw tsaug zog hom (Tsis siv neeg lub hwj chim-OFF muaj nuj nqi)
Yog tias tsis muaj kev ua haujlwm tau ua tiav rau lub sijhawm teem tseg, cov khoom siv hluav taws xob rau lub cev muaj zog, thiab lwm yam. (Qhov kev teeb tsa yog los ntawm 1 txog 50 feeb.)
10. LED teeb
Lub teeb LED yog muab raws li tus qauv ntawm lub hauv qab ntawm caj npab lub puab tsaig. Ntxiv rau qhov kev ua haujlwm ntawm lub teeb ci LED, cov xim ntxoov ntxoo tuaj yeem hloov pauv raws li "dawb ⇔ xim nruab nrab (tus nqi pib) ⇔incandescent" txhawm rau pab txo tus neeg teb xov tooj qhov muag qaug zog.
11. Triple tes hloov
Triple hom tes hloov tau raug qhia. Qhov hloov pauv txhawb ntau yam haujlwm xws li kov-rov qab muaj nuj nqi, daim iav muaj nuj nqi thiab ntau txheej txheej kho qhov ua haujlwm.
12. Hook sij hawm hloov hom
Hook sij hawm tuaj yeem hloov kho kom nyab xeeb thaum tawm hauv lub tshuab xaws ON los ntawm kev teeb tsa kev ua haujlwm rau "Hook timeing adjustment mode" ntawm lub vaj huam sib luag ua haujlwm.
13. Cov qauv tsis muaj roj lauj kaub
Lub tshuab semi-dry lub taub hau uas tau muab nrog roj tau tsim. Nrog lub taub hau tshuab no, cov roj stains ntawm cov khoom sewn raug txo.

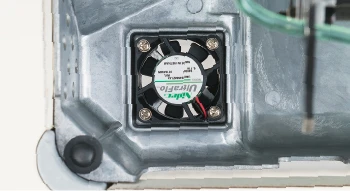

14. Txias kiv cua
Lub kiv cua txias yog nteg tawm ntawm txoj hauj lwm uas yog qhov zoo tshaj plaws los txo cov cua sov uas tsim los ntawm chav sib txuas.
15. Rov qab khawm
Lub zog rov qab (rov qab-feed lever) yog muab raws li tus qauv txhawm rau txhawb nqa kev ua haujlwm zoo.
