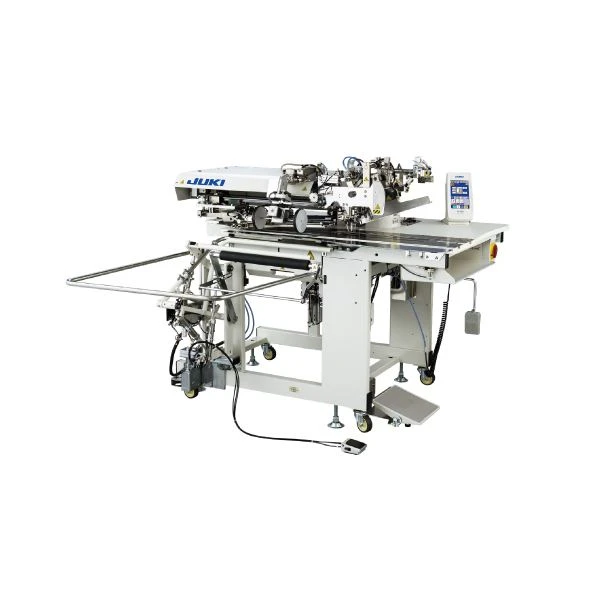

JUKI APW 895 tsis siv neeg hnab tshos vuam tshuab
1. Tshuab Lub Npe: Juki Tsis Siv Neeg Hnab Hnab Vuam Tshuab
2. Brand: JUKI
3. Model: APW-895N
4. MOQ: 1sets
5. Max.Sewing Ceev: 3000sti / min
6. Stitch Length: Txheem 2.5mm (2.0-3.4mm)
7. Koob: ORGAN DP x17 Standard #16(#14-#18), SCHMETZ 190R Standard #100(#{7}}#110)
8. Xov: SPUN #60 (pom zoo)
9. Number of Independent Sewing Patterns: 99 tus qauv (999 qauv thaum siv daim npav CF lub cim xeeb)
1 0. Compressed Cua / Cua Consumption: 0.5MPa, 40dm³ / min (ANR)
JUKI APW-895N tsis siv neeg hnab tshos vuam tshuab:
JUKI APW-895N tsis siv neeg hnab tshos vuam tshuab
Lub tshuab yog hloov tau yooj yim rau kev xaws ntawm ntau lub hnab ris. Lub sijhawm tshuab raug txo kom muab cov khoom tsim tau ntau ntxiv.
JUKI APW-895N tsis siv neeg hnab tshos vuam tshuab tsis siv neeg:
|

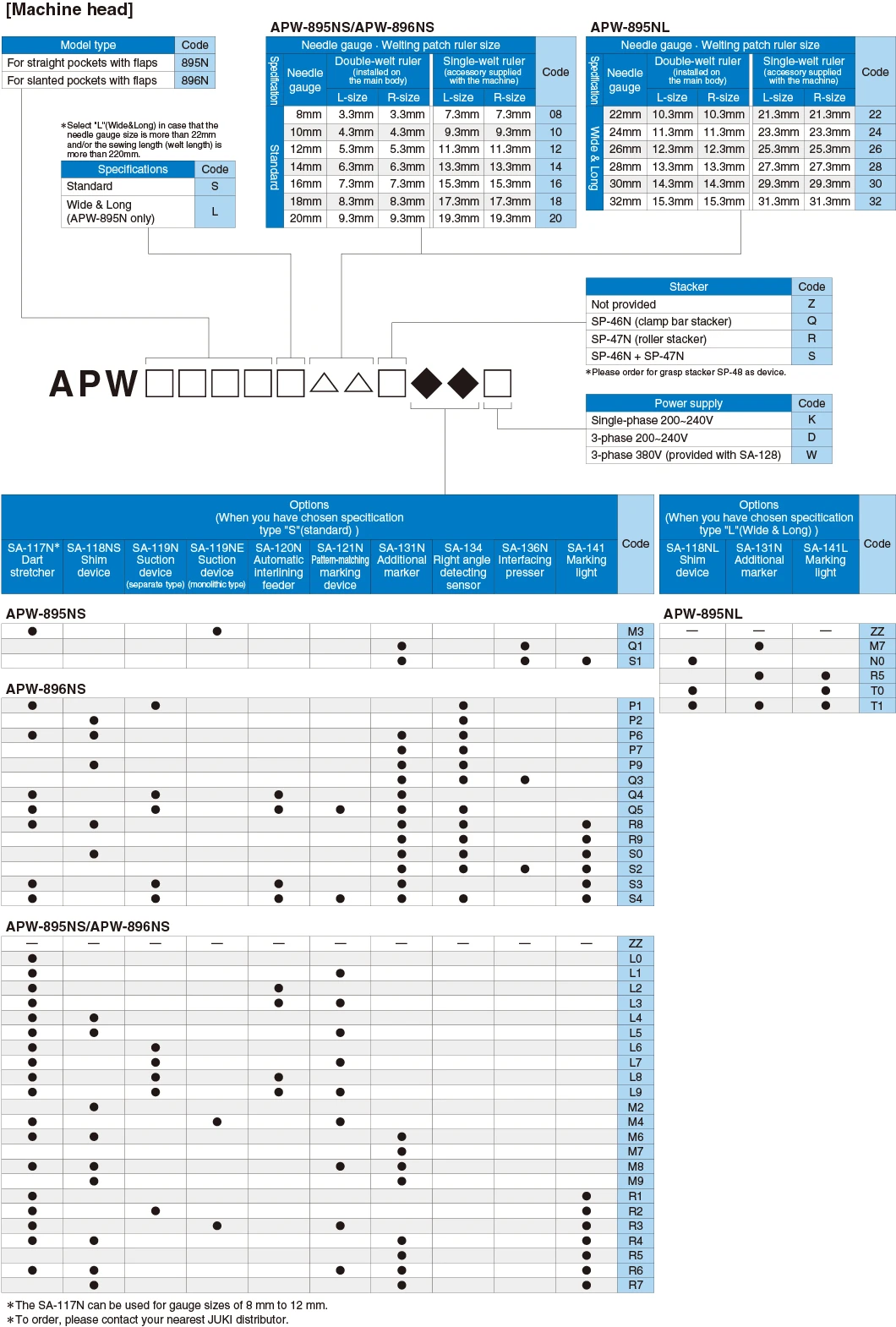

Model npe |
APW-895N |
APW-896N |
|
Flap hom |
Rectangular nrov plig plawg |
Rectangular / Slanted nrov plig plawg |
|
Sewing ceev |
Max. 3000 sti/min ({1}} sti/min) |
|
|
Hom welts |
Parallel ob welt, parallel ib leeg welt (nrog / tsis muaj flaps) |
Parallel ob lub welts, ib leeg ib leeg welts, slanted ob welts, slanted ib leeg welts, trapezoidal sewing (nrog / tsis muaj flaps) |
|
Stitch ntev |
Standard 2.5mm (2.0-3.4mm) |
|
|
Stitch Length (ntxuav stitching) |
Condensation stitching: Standard 1. 9}} |
|
|
Corner-riam txiav kho txoj kev |
Kho kho tshuab |
Kev kho hluav taws xob |
|
Koob |
ORGAN DP × 17 Standard #16 (#{2}}#18), SCHMETZ 190R Standard #100 (#100-#110) |
|
|
Xov |
SPUN #60 (pom zoo) |
|
|
Hook |
Vertical-axis 1.7-fold muaj peev xwm nuv |
|
|
Tus naj npawb ntawm cov qauv xaws ywj siab |
99 qauv (999 qauv thaum siv daim npav CF lub cim xeeb) |
|
|
Tus naj npawb ntawm lub voj voog xaws qauv |
20 qauv |
|
|
Tus naj npawb ntawm lwm cov qauv xaws |
20 qauv |
|
|
Tshuab taub hau |
2- koob, tshuab xauv tshuab (LH-895) |
2- koob, lockstitch tshuab nrog kev sib cais koob bar (LH-896) |
|
Cov ntaub ntawv pub mis |
Tsav los ntawm stepping motor |
|
|
Lub zog xav tau |
Ib theem 200 ~ 240V, 3-theem 200 ~ 380V 50Hz / 60Hz |
|
|
Kev siv fais fab |
350 VA |
|
|
Compressed cua / cua noj |
0.5MPa, 40dm³/min (ANR) |
|
|
Qhov hnyav |
2 38,5kg |
259 |
|
Qhov ntev |
1095x1500x1200mm (Dav 1580mm=Stacker suav nrog) (Qhov siab 1800mm=Xov xov tooj suav nrog) |
|
|
Model npe |
APW-895NWS |
APW-895NL |
APW-896N |
|
Nrog / Tsis muaj |
Tsis muaj |
Tsis muaj |
Tsis muaj |
|
Nrog |
Nrog |
Nrog |
|
|
Sewing Length (qhov ntev) |
Min. 18mm-Max. 220 hli (ssettable increments ntawm 0.1mm) |
Min. 18mm-Max. 300mm (tuaj yeem nce ntxiv ntawm 0.1mm) |
Min. 18mm-Max. 220 hli (ssettable increments ntawm 0.1mm) |
|
Min. 35mm ib |
Min. 50mm-Max. 250mm (ssettable increments ntawm 0.1mm) |
Koob gauge 12mm los yog tsawg dua: Min. 21mm-Max. 220 hli |
|
|
Koob ntsuas |
8, 10, 12, 14, 16, 18, 20mm |
22, 24, 26, 28, 30, 32mm |
8, 10, 12, 14, 16, 18, 20mm |
JUKI APW-895N tsis siv neeg hnab tshos vuam tshuab nta:
1. Kev tsim khoom ntau ntxiv
Ntxiv rau lub taub hau ntawm lub tshuab ua haujlwm siab nrog qhov siab tshaj plaws ntawm 3, 000 sti / min, kev txav nrawm dua (dhia thiab xa mus) ntawm lub clamp ko taw ua tiav lub sijhawm tshuab luv.

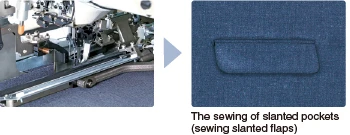

2. Kev xaws cov hnab tshos slanted (rau sewing slanted flaps).(APW-896N) Xwb JUKI
Ntxiv nrog rau APW-895N txoj haujlwm, APW-896N txhawb kev xaws cov hnab tshos slanted (rau sewing slanted flaps).
Lub ntiaj teb thawj lub koos pij tawj tswj kev sab xis txiav txoj hauj lwm ntawm lub kaum ntse ntse riam ua kom yooj yim kho cov riam yooj yim los ntawm kev khiav hauj lwm ntawm lub vaj huam sib luag.

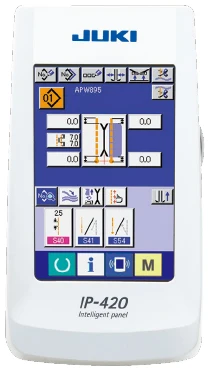

3. Pom tau thiab yooj yim-rau-siv loj xim LCD kov-vaj huam sib luag (IP-420)
Cov duab nraaj thiab kov vaj huam sib luag ntawm cov xim loj LCD pab ua kom yooj yim ntawm kev siv. Cov haujlwm yooj yim yog ua nrog cov duab kos duab thiab cov duab kos. Cov lus qhia tau muab rau hauv koj hom lus xaiv.

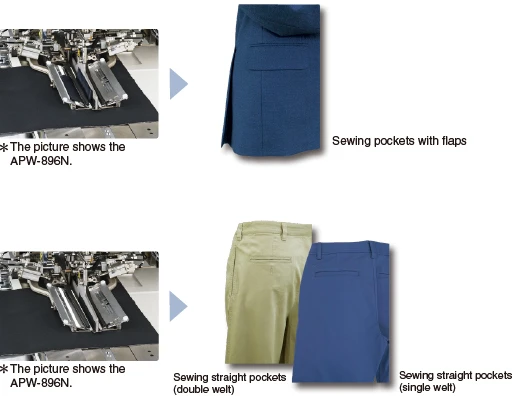

4. Kev xaws cov hnab ris ncaj (nrog flaps) ntawm suits, tsho thiab ris (APW-895N/896N)
Lub tshuab txhawb kev xaws ntawm cov hnab ris ncaj (nrog flaps) ntawm suits, tsho thiab ris.
Muab ob npaug rau-/ib-welt xaws tuaj yeem hloov pauv los ntawm qhov yooj yim kov ntawm tus yuam sij ntawm lub vaj huam sib luag ua haujlwm.
Nce adjustable ntau yam ntawm xaws ntev (min. 18mm mus rau max. 220mm)
5. Lub sij hawm xav tau rau kev teeb tsa kev hloov pauv yog luv luv

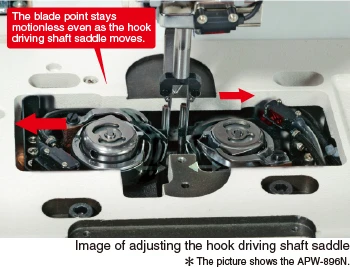

JUKI APW-895N tsis siv neeg hnab tshos vuam tshuab yog nruab nrog lub ntsuas qhov hloov pauv yooj yim uas ua rau muaj kev hloov pauv thiab hloov ntawm txoj haujlwm ntawm tus nuv tsav tsheb ncej eeb los ntawm saum lub txaj yam tsis muaj tilting lub taub hau tshuab. Lub sij hawm yuav tsum tau hloov lub koob ntsuas yog tsawg tshaj li ib nrab ntawm qhov yuav tsum tau los ntawm cov tshuab pa.
Txoj hauj lwm ntawm lub phaj folding thiab rab koob tsis hloov txawm tias ob npaug-/ib-welt sewing hloov dua. Qhov no txhais tau hais tias lub phaj folding tsis xav tau kev hloov kho.
Lub tshuab yog muab raws li tus qauv nrog lub micro-kho muaj nuj nqi rau kev kho lub clamp ko taw txoj hauj lwm. Qhov no ua rau ob qho tib si raug thiab hloov kho sai ntawm qhov dav welting.
6. Sab nraud nruab nrab
Tam sim no USB-npaj lub cev tseem ceeb ntawm lub tshuab xaws siv ntau hom kev tshaj tawm
Lub cim xeeb cia muaj peev xwm ntawm lub cev tseem ceeb ntawm lub tshuab xaws tau raug kho kom zoo. Tam sim no USB-npaj lub cev tseem ceeb ntawm lub tshuab xaws siv ntau hom kev tshaj tawm. Ntxiv nrog rau daim npav Compact Flash, lub cev tseem ceeb ntawm lub tshuab xaws yog muab raws li tus qauv nrog USB txuas. Tam sim no, cov ntaub ntawv tuaj yeem nkag / tawm mus rau / los ntawm ntau hom xov xwm (SD (Secure Digital Card), CF (Compact Flash), SM (Smart Media) thiab lwm yam) los ntawm kev siv USB ntiv tes xoo thiab daim npav nyeem ntawv.

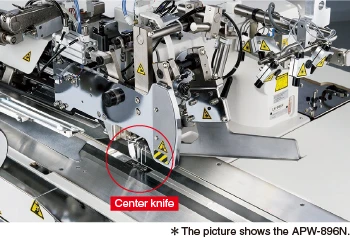

7. nce sharpness ntawm nruab nrab riam
Ib tug ntawm nws tus kheej tsav (ceev hloov tau) stepping motor yog saws rau nruab nrab riam.
Lub hauv paus riam yog li ntawd tseem tsis cuam tshuam los ntawm kev xaws ceev thiab txiav ntau sharply thiab huv si. Tsis tas li ntawd, cov riam zoo yog txhim kho los tiv thaiv kev khoov thiab ua kom pom kev nce ntxiv thaum cov khoom siv elastic raug sewn.

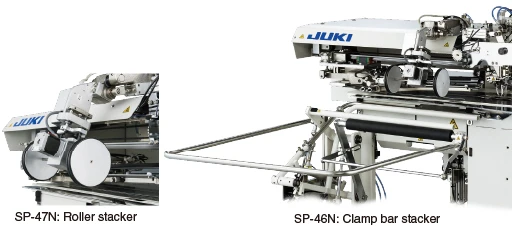

8. Tshiab tsim stacker uas muaj peev xwm lis cov khoom me me
Muaj ob hom stackers; xws li, clamp bar stacker (SP-46N) thiab cov menyuam stacker (SP-47N). Nrog lub stacker, lub tshuab muaj peev xwm lis cov ntaub ntawv nrog ib tug luv luv deb ntawm 250 mm ntawm nws ntug mus rau lub hnab tshos. Ib tug stacking sensor kuj muab raws li tus qauv los tiv thaiv stacking yuam kev.
9. Sib npaug stitch-ntev txoj cai / sab laug backtacking muaj nuj nqi yog ntsia
JUKI APW-895N Lockstitch Tsis Siv Neeg Vuam Tshuablos nrog kev ua haujlwm ntxiv rau kev sib npaug ntawm txoj cai thiab sab laug backtack stitch ntev rau kev xaws ntawm cov hnab ris slanted. Qhov kev ua haujlwm no pab txhim kho lub backtack seam zoo.
10. Tsis siv neeg sab laug-flap lub kaum sab xis kuaj pom muaj nuj nqi (APW-896N)

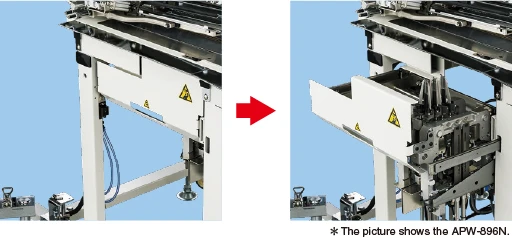

11. Lub kaum ntse ntse riam yog yooj yim kho
Lub kaum ntse ntse riam, uas tuaj yeem kos tawm hauv tag nrho riam chav tsev yog saws. Cov riam tau yooj yim kho thiab tuaj yeem hloov tau yooj yim. Lub kaum ntse ntse riam npog pab txo cov khoom thrusting, yog li ua tiav cov khoom txiav nrog raug.

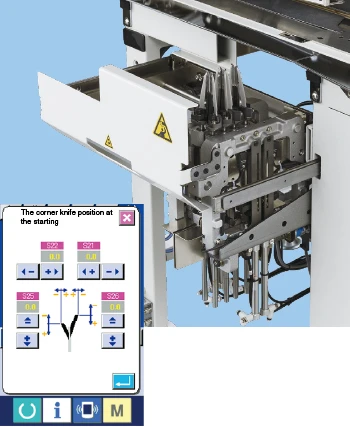

12. Lub ntiaj teb thawj "pob riam txiav kev hloov kho" los ntawm kev ua haujlwm vaj huam sib luag tiav
Muaj ntau ntau yam sib txawv ntawm welting thaj ua rau thaj raws li specifications thiab cov ntaub ntawv. Lub kaum ntse ntse txiav ntawm kaum ib feem ntawm lub welt xav tau kev kho kom zoo. Qhov no tam sim no tuaj yeem hloov kho tau yooj yim hauv 0.1 hli cov kauj ruam nkaus xwb los ntawm kev ua haujlwm vaj huam sib luag txij li lub kaum ntse ntse riam los nrog "kho lub computer tswj ntawm txoj haujlwm txiav" thiab ib qho "txoj cai sab xis- thiab sab laug-hla lifting/lowering" mechanism . Kev kho kom zoo ntawm cov riam txiav rau lub plooj tuaj yeem ua tau ob qho tib si hauv cov lus qhia crosswise thiab lengthwise, tsis yog los ntawm kev siv lub cuab yeej, tab sis tsuas yog los ntawm kev khiav hauj lwm vaj huam sib luag. Qhov no txo qis lub sijhawm hloov kho thiab ua tiav cov khoom zoo.

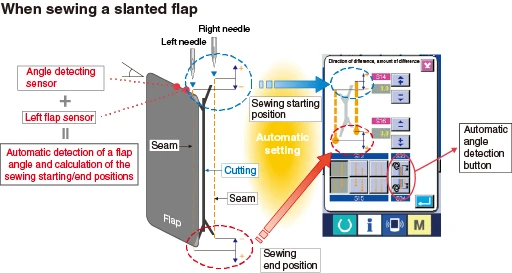

13. Lub tshuab yog muab raws li tus qauv nrog "automatic sab laug-flap lub kaum ntse ntse kuaj pom muaj nuj nqi"
Los ntawm nias lub khawm tsis siv neeg tshawb nrhiav lub kaum sab xis ntawm lub vaj huam sib luag ua haujlwm thaum xaws ib lub ntsej muag sab laug, ob lub sensors pom lub ntsej muag lub ntsej muag los kho qhov pib xaws (saws kawg) txoj hauj lwm ntawm txoj cai thiab sab laug koob thaum xaws ib lub flap sab laug.
* Cov haujlwm no yog muab raws li tus qauv nkaus xwb ntawm sab laug-flap xaws.
* Thaum tsis siv neeg nrhiav pom qhov sib txawv ntawm tsawg dua 0.5 hli, thaum uas tig mus stitching yog ua.
* Rau kev xaws ntawm ib qho welt, lub flap-angle detecting sensors tsis tuaj yeem siv. Tsuas yog lub flap sensor yuav siv tau.
